Chamfers and Fillets Based on Skeletal Structures



This research was supported by the Austrian Science Fund (FWF): Grants P25816-N15 and ORD 53-VO. Joint work with Peter Palfrader. Click on an image to get a larger one.

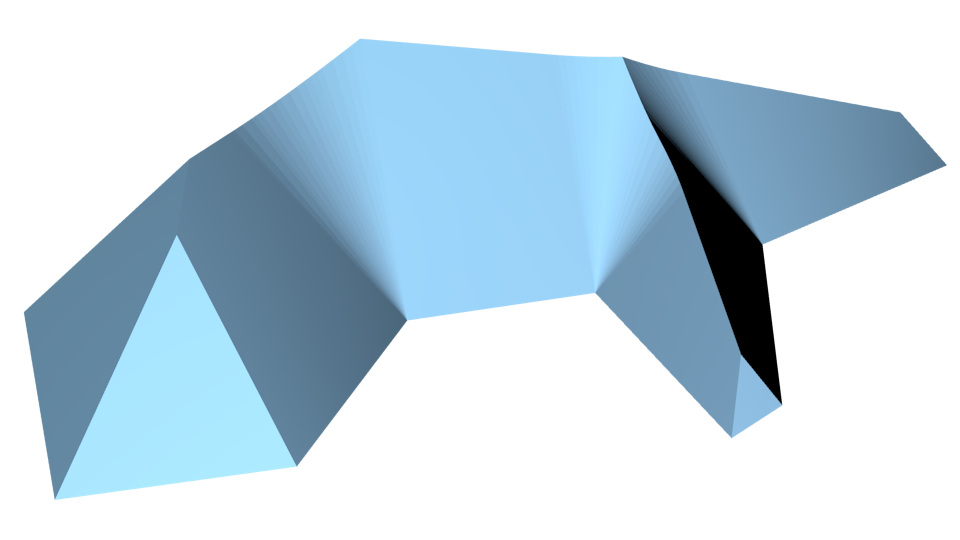

Sample results based on a Voronoi diagram:

[VD-based chamfer] [VD-based chamfer] [VD-based chamfer]

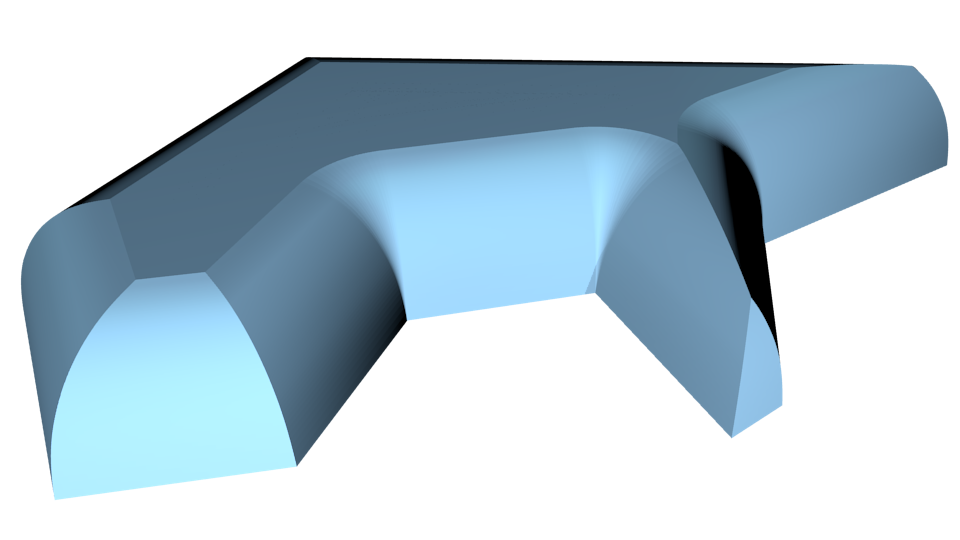

Standard linear chamfer Round-over Cove
[VD-based chamfer] [VD-based chamfer] [VD-based chamfer]

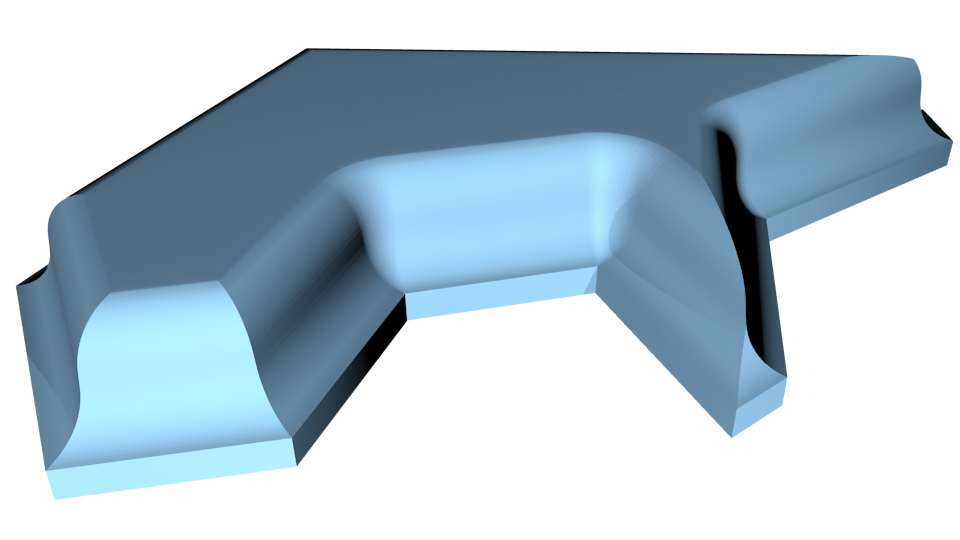

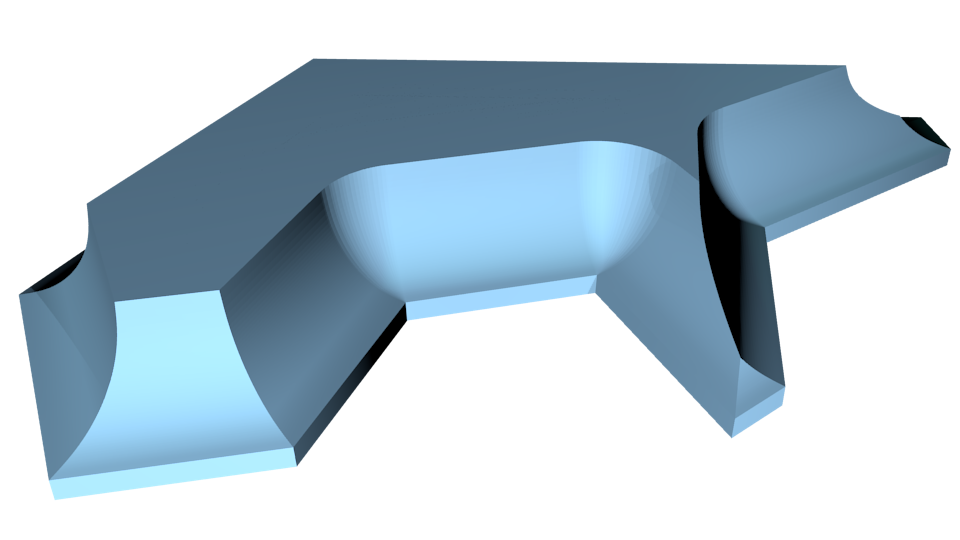

Inset-round Ogee Classical
[VD-based chamfer] [VD-based chamfer] [VD-based chamfer]

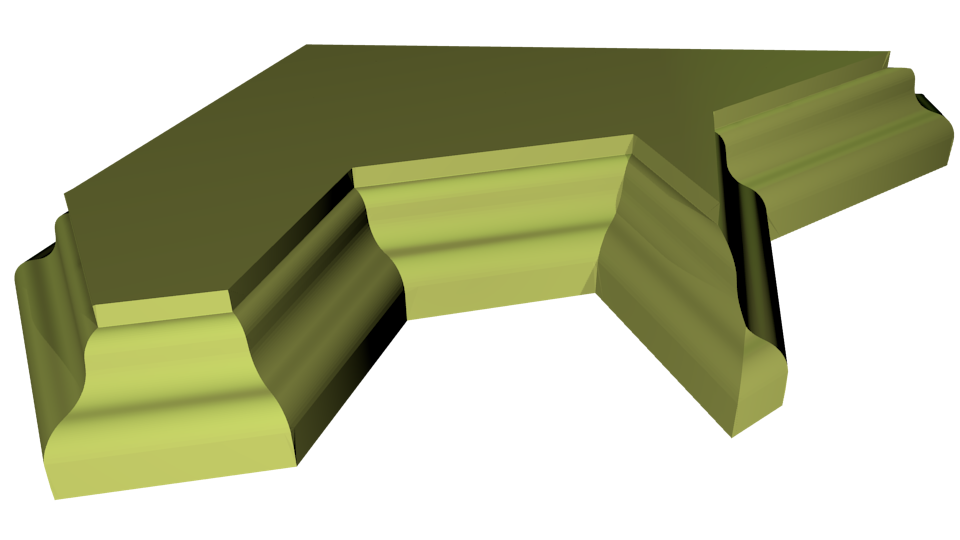

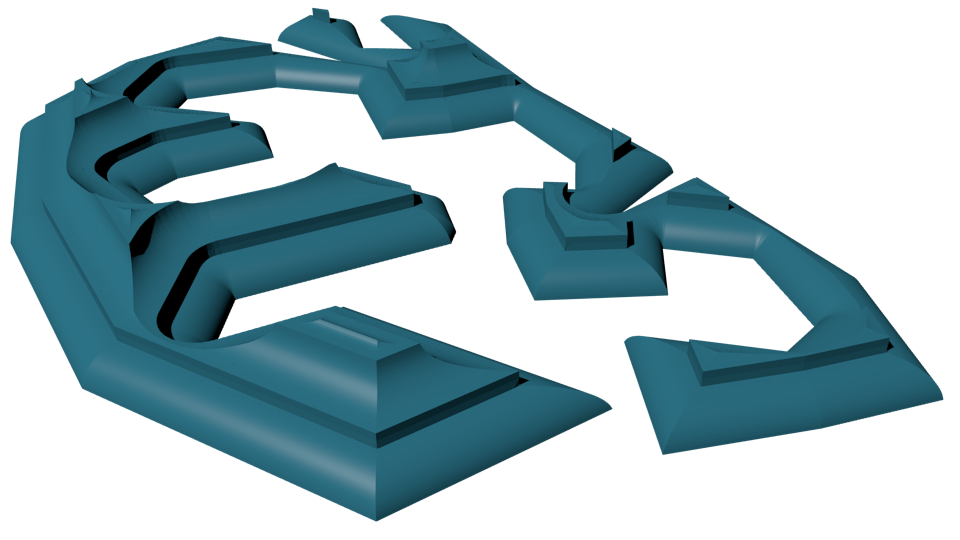

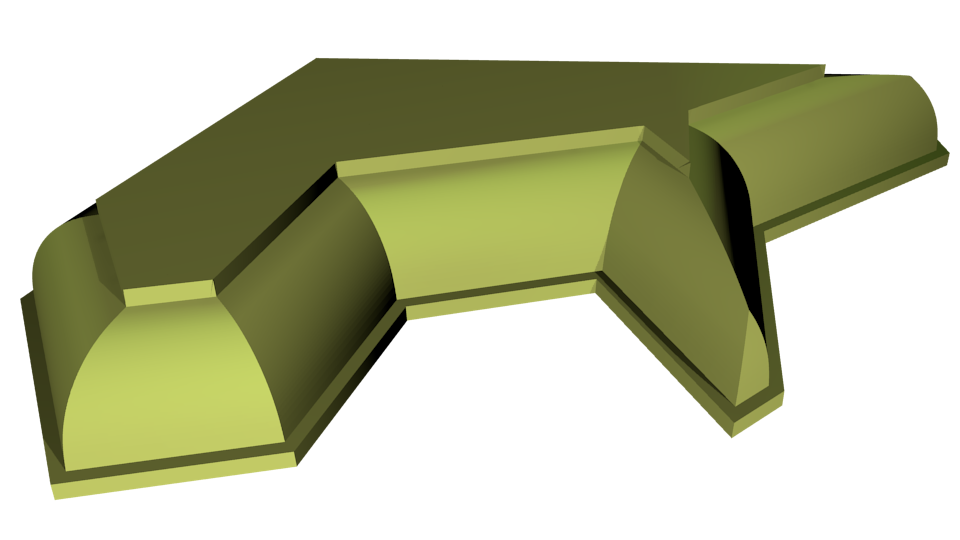

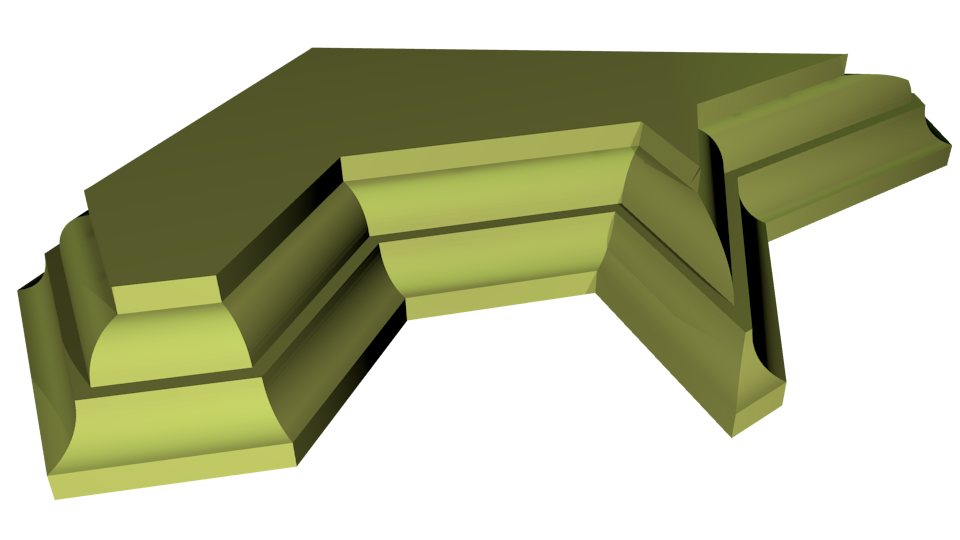

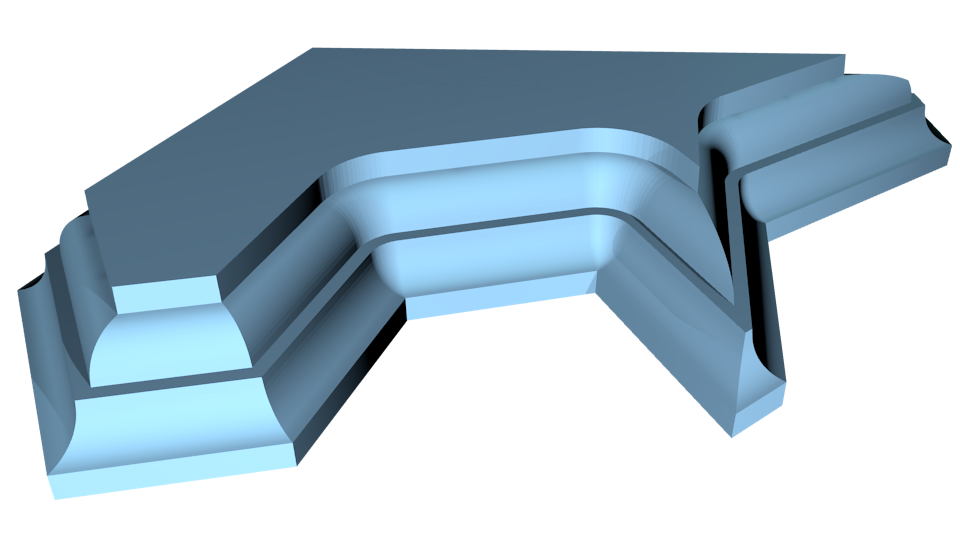

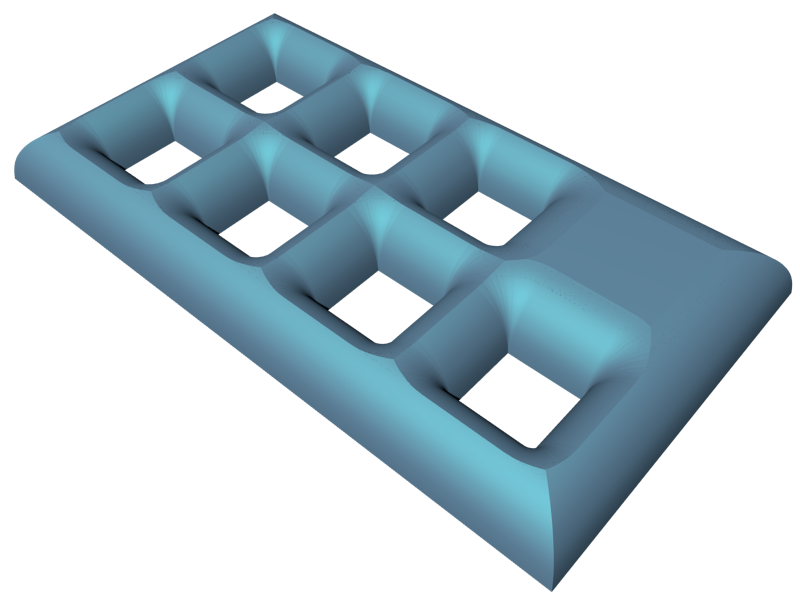

Complex round-over chamfers Classical chamfers Classical chamfers of Lanzarote Island


Sample results based on a straight skeleton:

[SK-based chamfer] [SK-based chamfer] [SK-based chamfer]
Standard linear chamfer Round-over Cove
[SK-based chamfer] [SK-based chamfer] [SK-based chamfer]

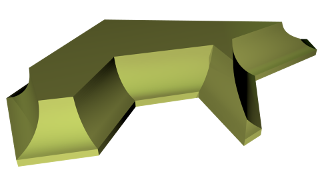

Inset-round Ogee Classical
[SK-based chamfer] [SK-based chamfer] [SK-based chamfer]

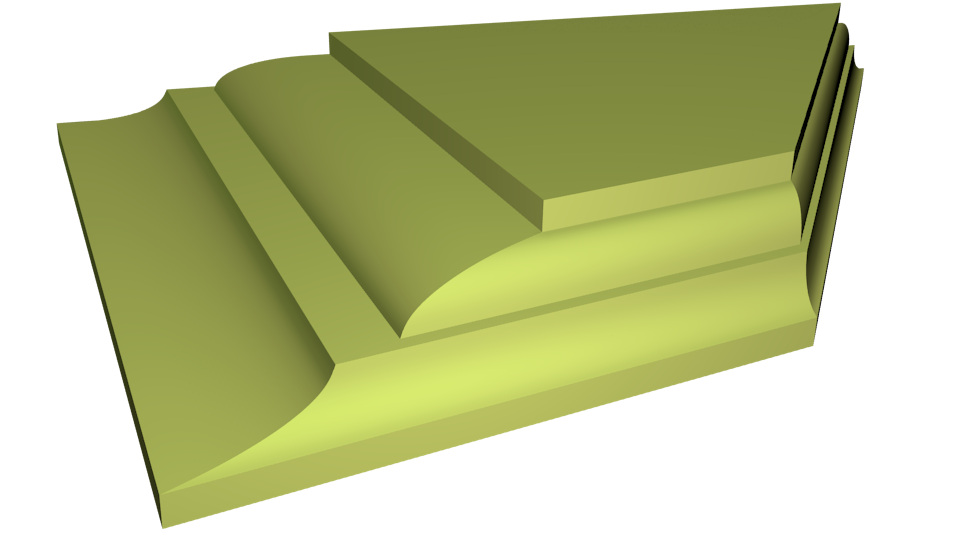

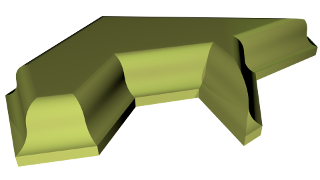

Wavy edge Cove and bead Ogee and fillet
[SK-based chamfer]
Chamfer based on weighted SK
